Lift – Slide Doors

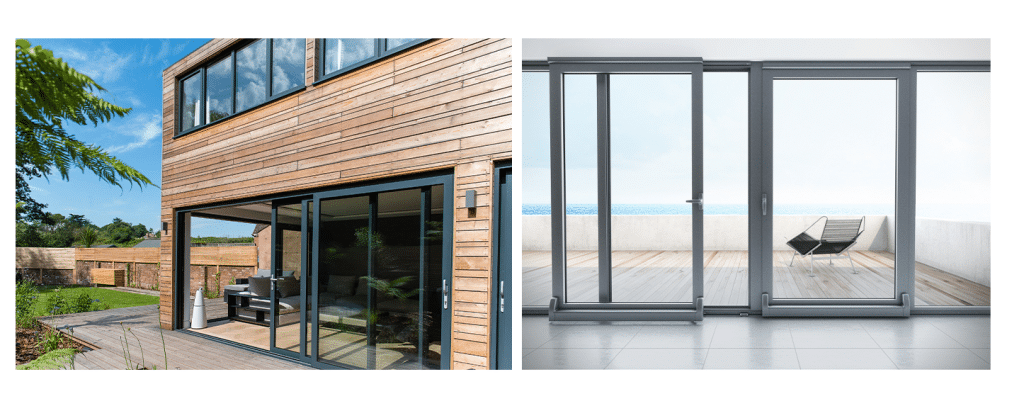

LD160 Lift – Slide Door
- Appearance Design
It features strong linear aesthetics. With a 50mm narrow middle post hook and an 85mm narrow sash frame, it provides a panoramic unobstructed view, excellent lighting, and a powerful visual impact. - Thermal Insulation Performance
The use of sturdy thermal break profiles and a hook design with a soft – hard co – extrusion structure enhances the overall thermal insulation performance. - Sealing and Smoothness
The whole series is equipped with low – damping friction rubber strips, ensuring smooth opening and closing of the sliding door while also providing sealing and sound – insulation functions. - Track Design
The base of the sliding track adopts a load – bearing reinforcement design, which can bear a weight far exceeding that of the door leaf itself. The lower sliding track has a simple structure, is not prone to dirt accumulation, and is easy to clean. The guide rail smoothly transitions to the ground, allowing for unobstructed entry and exit. - Hardware Accessories
The core hardware components are selected from well – known brands. The hook – lock structure locking method improves the safety factor. The upgraded stainless – steel one – piece bent track closely cooperates with the hardware pulley, ensuring smooth sliding.
LD185I Lift – Slide Door – Integrated Window Screen
- Appearance Advantages
It condenses clean lines and is equipped with a diamond – mesh sliding screen door. The screen door frame is integrated with the opening sash frame, presenting a simple appearance. - Silent Design
Large – size siliconized wool strips, combined with a long – lasting silent component of silent pulleys, ensure vibration – free and noise – free use. - Operation Modes
It supports both manual and electric operation modes. The manual opening and closing is classic and durable, while the electric operation is intelligent and convenient. - Safety Protection
The hydraulic handle damper prevents the door leaf from rebounding. A comfortable closing component is available, making it safer and more user – friendly.
Swing Doors
D75F (75 Swing Door – Frame and Sash Flush)
- Appearance Design
It adopts a frame – and – sash flush structure design. The narrow middle rail design and the main – and – sub – sash visual surface design without additional profiles (false middle rail) reduce obstruction, provide a broad view, and create an aesthetically pleasing and grand appearance when installed. - Sealing Performance
The specially designed 30mm multi – cavity thermal break strip, insulated screw – connection structure, and optimized air – tight design of the barrier – free threshold endow it with excellent sealing performance. - Thermal Insulation Performance
The frame – and – sash thermal insulation channels of the product adopt multi – cavity grille covers. The customized corner connectors and sealing components effectively reduce the heat conduction effect at the frame – and – sash gaps. - Hardware Accessories
The newly designed three – section column – type hinge has excellent performance. The spring – type top – and – bottom bolt design of the sub – sash enables automatic locking. Options such as the GEZE hidden door closer, split – panel door handle, and dual – channel hidden drainage are also available.
D85H (85 High – performance Swing Door)
- Appearance Design
It features a minimalist design with unique undulating lines. It can be combined with 85 – structure – depth products to form a door – and – window – combined structure, integrating modern lifestyle elements. - Thermal Insulation Performance
The frame is filled with polyurethane, and a 40mm multi – cavity PPO PA thermal break strip is used to effectively insulate heat. - Safety Performance
It uses a high – end anti – theft lock core with a multi – point locking design, providing security against prying. It can also be equipped with an intelligent locking function. - Hinge Configuration
The hinge ensures smooth opening and closing over millions of times. The whole series is standard – equipped with ultra – low – energy – consumption LOW – E glass. The 4SG thermoplastic edge spacer can be selected to enhance the thermal insulation and sun – shading effect.
Please contact customer service to obtain the model and quotation of the products you need.
